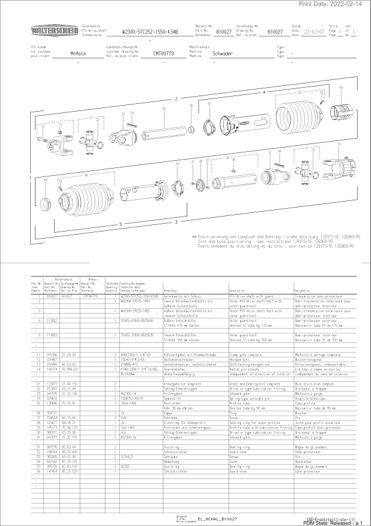

Walterscheid® PTO Driveshaft W 2300 - 1810027
W 2300 STC25Z 1550 K34B 100 2129005598603 1BGA/2AG PR-D1
Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability.
Cross references, designation of type by vehicle manufacturers or competitors are for guidance only.
Check that the part is correct for the application before fitting.
All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.
- Type
- W
- Size
- 2300
- Shaft length (Lz)
- 1550
- Item no. attachment WH-A
- 145174
- Item no. attachment WH-I
- 41356
- Torque of clutch in daNm
- 100
- Rotation speed max. RPM
- 540 UPM
- Form attachment WH-A
- KP1 3/8
- Form attachment WH-I
- KP1 3/8
- KZ Anschl.-WH-I
- AGKF
- Drehzahl max.
- 540 UPM
- Inner profile length
- 1400
- SNR Anschl.-WH-A
- 145174
- PR-Bef.
- AA
- PR-Länge-A
- 1405.00
- PR-Dicht.
- PR-DICHTRING
- Protective colour
- Yellow
- PR-Nippel
- PR-NIPPEL
- PR-I
- 1BGA
- Attachment type of profile
- AA
- Length of guard tube (inner)
- 1320
- Nipple shape/position
- LB LB
- KZ Anschl.-WH-A
- K-KB
- Nipple on sliding profile
- PR-NIPPEL
- Form Anschl.-WH-A
- KP1 3/8
- W-Länge
- 1550.00
- Schutzrohrlänge-I
- 1320.00
- Schutzrohrlänge-A
- 1325.00
- Length of guard tube (outer)
- 1325
- MD in daNm
- 100.00
- SNR cone WH-I
- 606279
- Outer profile length
- 1405
- Form Anschl.-WH-I
- KP1 3/8
- SNR cone WH-A
- 147454
- Kuppl./Freilauf
- K34B
- Cone type WH-I
- FT
- PR-A
- 2AG
- Nipple form / position I/A
- LB LB
- PR-Länge-I
- 1400.00
- Sliding profile seal
- PR-DICHTRING
- Cone Type WH-A
- VT FT
- SNR Anschl.-WH-I
- 41356
- Cross seal
- P-DICHTUNG
- Clutch / One-way type
- K34B
- Abbreviation attachment WH-A
- K-KB
- Abbreviation attachment WH-I
- AGKF
- Profile tube - outer type
- 2AG
- Profile tube - inner type
- 1BGA
- Guard type
- STC25Z
