Walterscheid® Elastic clutch K65/2 2400 - 1327843
K65/2 2400 KNP1 3/8-6 ZV
Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability.
Cross references, designation of type by vehicle manufacturers or competitors are for guidance only.
Check that the part is correct for the application before fitting.
Original Walterscheid elastic clutch
Product advantages
Independent of direction of rotation
Absorbs vibrations and shocks
Product advantages
Independent of direction of rotation
Absorbs vibrations and shocks
The scope of delivery includes 1x Elastic clutch K65/2.
All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.
- Type
- K65/2
- Size
- 2400
- Length (mm)
- 167
- Distance from drilling end
- 20
- SNR-Housing/E-Coupl
- 80119
- Pitch circle diameter
- 0
- Länge
- 167
- Connecting PR hub
- KNP1 3/8-6
- Connection profile hub
- KNP1 3/8-6
- Locking/drilling/thread
- ZV
- SNR.-Housing/E-Coupl
- 80116
- SNR-Gehäuse
- 80119
- Ø Teilkreis
- 0.00
- Surface/Paint
- LACK.Yellow

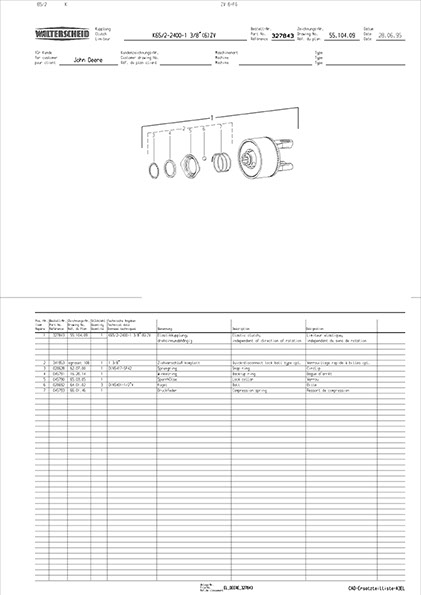

- Drawing
- 55.104.09
