Walterscheid® PTO Driveshaft W 2300 - 1135826
W 2300 SC15Z 660 K92/4 135 211000 5621816 ZP35X31-18H/H
Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability.
Cross references, designation of type by vehicle manufacturers or competitors are for guidance only.
Check that the part is correct for the application before fitting.
Standard drive shaft with connection fork and overload clutch
Product advantages
The W series PTO drive shaft offers tried-and-tested Walterscheid technology and is perfectly designed to suit all application areas. The excellent benefits of this Walterscheid PTO drive shaft is a long service life, ease of use, and great safety properties. For decades, Walterscheid has been a guarantee of the highest quality. The W series are optimally dimensioned for drivetrain tasks, from simple to complex ones. It impresses users with its robust design and high reliability for daily use. Another advantage: All of the components in the PTO drive shaft W series can be replaced really easily to increase ease of use or if spare parts are needed.
Product advantages
The W series PTO drive shaft offers tried-and-tested Walterscheid technology and is perfectly designed to suit all application areas. The excellent benefits of this Walterscheid PTO drive shaft is a long service life, ease of use, and great safety properties. For decades, Walterscheid has been a guarantee of the highest quality. The W series are optimally dimensioned for drivetrain tasks, from simple to complex ones. It impresses users with its robust design and high reliability for daily use. Another advantage: All of the components in the PTO drive shaft W series can be replaced really easily to increase ease of use or if spare parts are needed.

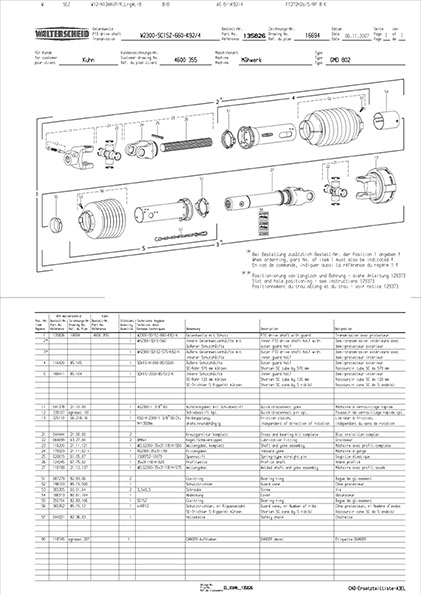

The scope of delivery includes a complete drive shaft size W2300 with connection fork (profile 1 3/8" (6)), friction clutch K92/4, guard, retaining chain(s), operating and assembly instructions incl. declaration of conformity.
- Type
- W
- Size
- 2300
- Shaft length (Lz)
- 660
- Item no. attachment WH-A
- 325110
- Item no. attachment WH-I
- 41378
- Torque of clutch in daNm
- 135
- Rotation speed max. RPM
- 1000 UPM
- Form attachment WH-A
- KP1 3/8
- Form attachment WH-I
- KP1 3/8
- Cone type WH-I
- VT FT
- Length of guard tube (inner)
- 430
- SNR cone WH-I
- 198103
- Protective colour
- Yellow
- Nipple form / position I/A
- 6B 6B
- Length of guard tube (outer)
- 430
- Nipple on sliding profile
- PR-NIPPEL
- Outer profile length
- 535
- Attachment type of profile
- AZ
- Chain WH-A
- K
- Inner profile length
- 520
- Cone Type WH-A
- RP7
- SNR cone WH-A
- 365347
- Cross seal
- STANDARD
- Clutch / One-way type
- K92/4
- Abbreviation attachment WH-A
- K-ZV
- Abbreviation attachment WH-I
- AG
- Profile tube - outer type
- ZNP35X31-18H
- Profile tube - inner type
- ZWP35X31-18H
- Guard type
- SC15Z
