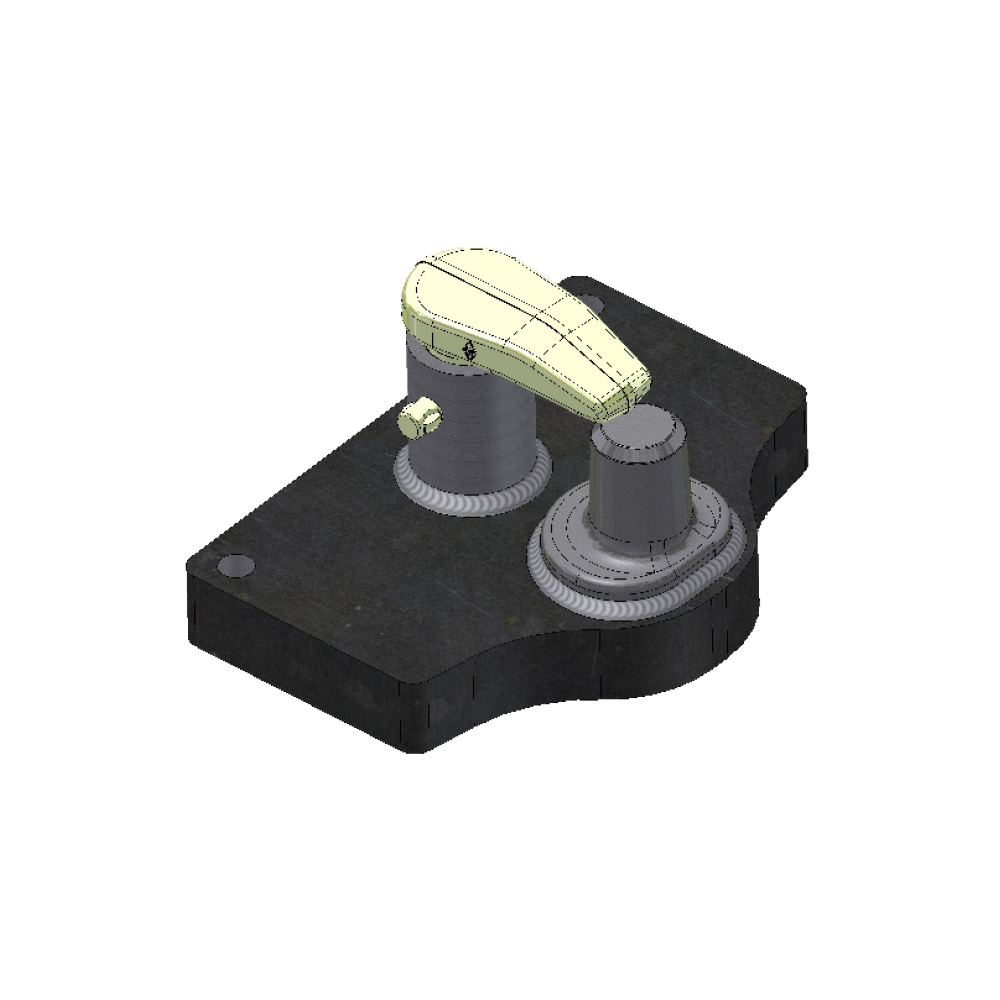

Walterscheid® Piton Plate PP5341 – 8005038

The scope of delivery includes 1x piton plate PP5341 with certificate.

The 2 pcs. supporting elements SE341 (order number: 8005060) are not included in the scope of delivery and must be ordered separately if required.

Instructions for certificates: Installation of coupling parts must be checked and approved by an recognized expert
according to section 4 of Annex VIIIb to the StVZO based at the information of delivered certificates

All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.

Suitable for towing eyes 50 according to DIN 9678 (ISO 5692-1) / ISO 20019.

Type of connection

Piton 50

Model

PP5341

Vertical load (daN)

2000

Norm DIN/ISO

DIN 9678 (ISO 5692-1) | ISO 5692 | ISO 20019

Single homologation

Single homologation

Approval

Single homologation

AP Code

N-P-CG0-GE-SH-0

A (mm)

275

B (mm)

200

C (mm)

40

AP-Code

N-P-CG0-GE-SH-0

Data sheet

4.05.010

Colour

Black
