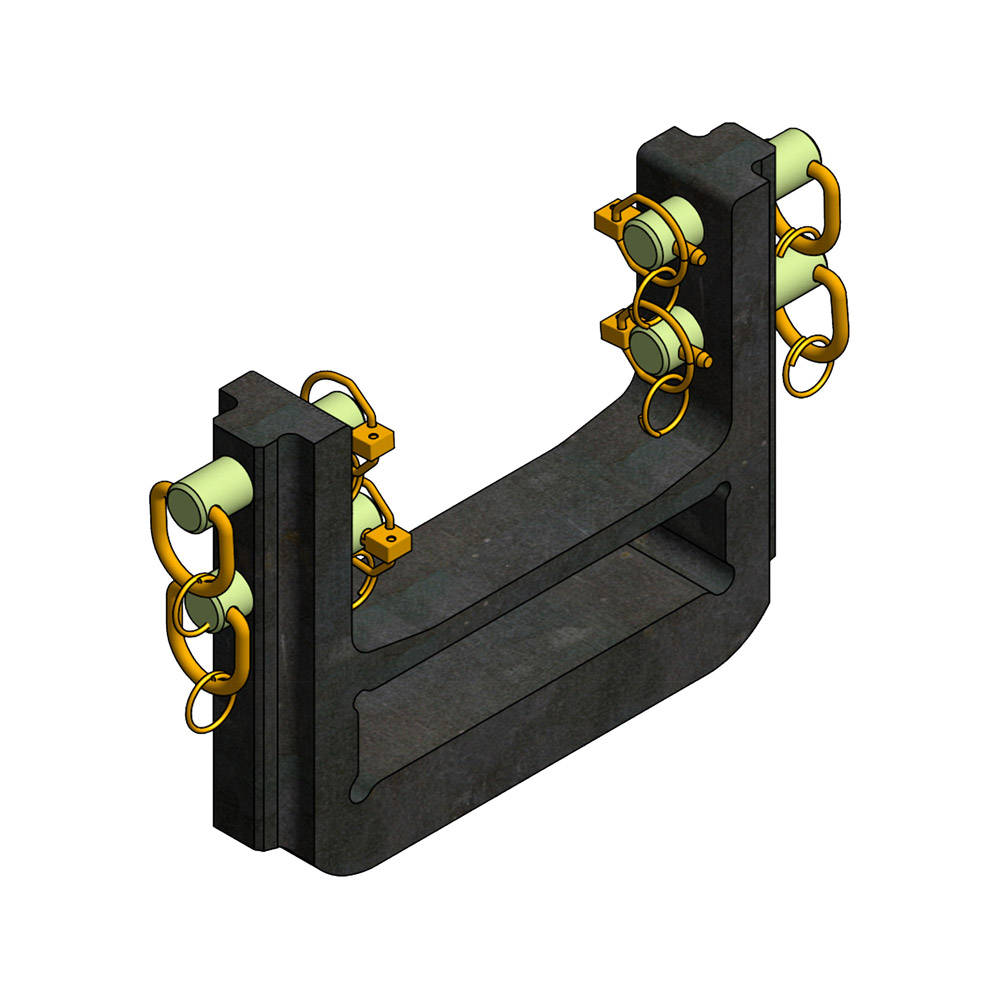

Drawbar supports are height adjustable sliding plates, which can be used exclusive in towing frames with guide rails. They are prepared for the attachment of connecting devices like drawbars, ball- or piton drawbars. The range of application extends to the use on agricultural or forestry vehicles, self-propelled work machines or trailers.
Product advantages
Adjustable
The scope of delivery includes 1x adjustable drawbar support ZPST4311F and 4x adjust pin AB8329 (order number: 8002527).
Approval No.: E1*147R00/00*0052
All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.
Prepared for the attachment of drawbars, model range KBa or Pba or comparable connecting devices.
- Model
- ZPST4311F
- Type of connection
- modular
- Vertical load (daN)
- 3500
- D-Value (kN)
- 92,0
- Approval
- E1 0052
- AP Code
- N-S-PAH-0/43

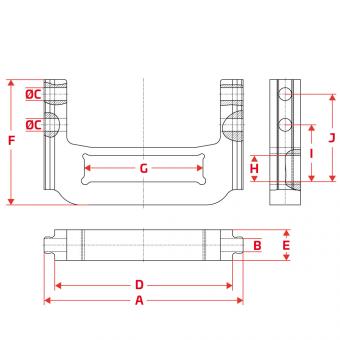

- A (mm)
- 311
- B (mm)
- 30
- C (mm)
- 22
- D (mm)
- 270
- E (mm)
- 75
- F (mm)
- 220
- J (mm)
- 153
- AP-Code
- N-S-PAH-EH-0/43
- G (mm)
- 232
- H (mm)
- 52
- I (mm)
- 93
- Data sheet
- 2.05.040
- Colour
- Fendt grey
