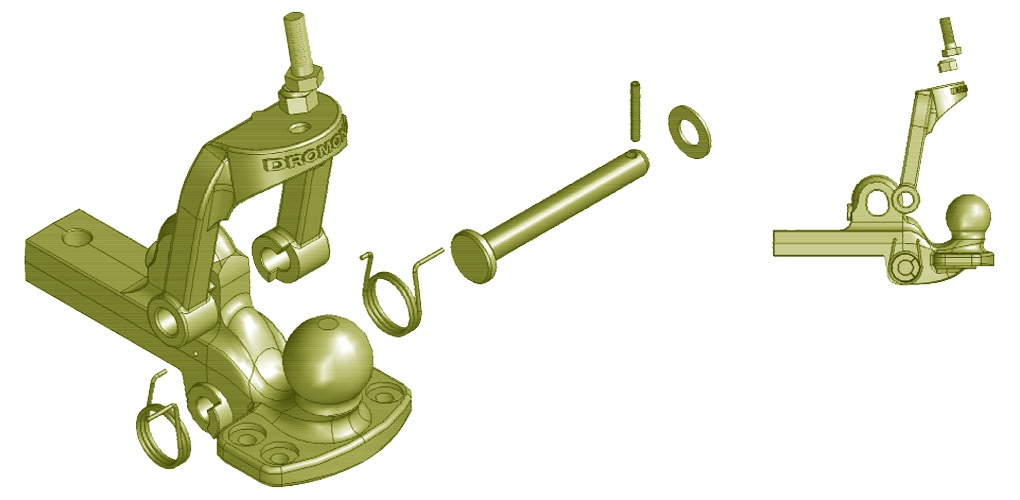

Coupling Ball Type 750-00282-50

Product number: 8005318

KK80 46x70x190/1x25 mm

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability.
Cross references, designation of type by vehicle manufacturers or competitors are for guidance only.
Check that the part is correct for the application before fitting.

Discontinued Model. Limited availability. Successor product: 8004631

The D value and the maximum vertical load of the hitch support must be observed. The respective lower value shall be applicable. The pertinent regulations (e.g. Accident Prevention Regulations for Vehicles) and the attachment guidelines of the vehicle manufacturers must be observed when installing the coupling! This must be released either by type approval or individual approval and always in combination with the support (e.g. ball-type drawbar). Official German regulations must be observed. For example: in Germany the obligations in §13 FZV regarding the permissible trailer weight and vertical load as indicated in the vehilce registration documents must be considered. Assembly must be carried out by a technical expert. Installation only made from a authorized specialist workshop. Installation and operating instructions must be observed!

All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.

Suitable for connection to ball-type trailer shanks 80 according to ISO 24347.
