NG 2480 RD40H8 P12 GM14 L118 1134729 La Walterscheid® Wide Angle Connecting Yokes Walterscheid® Hub yoke NG 2480 - 1134729

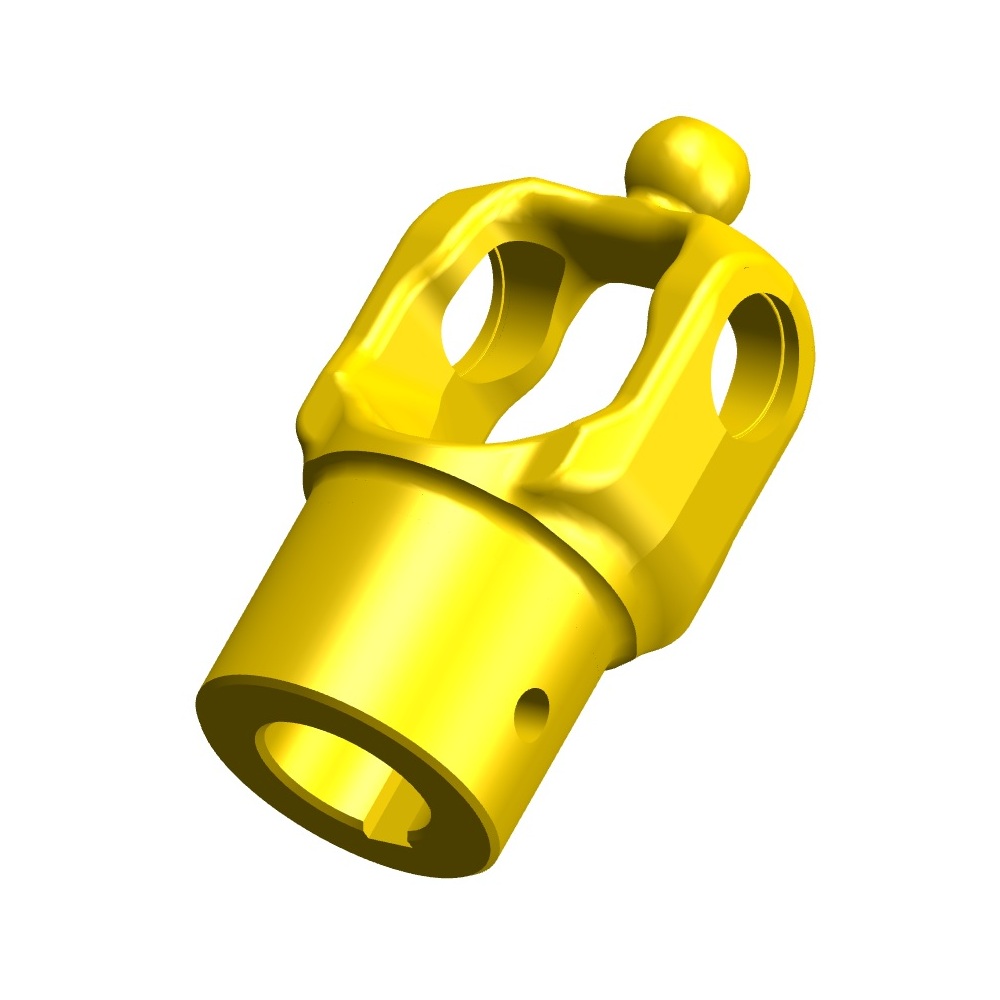

Walterscheid® Hub yoke NG 2480 - 1134729

Product number: 1134729

NG 2480 RD40H8 P12 GM14 L118


Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability.
Cross references, designation of type by vehicle manufacturers or competitors are for guidance only.
Check that the part is correct for the application before fitting.


Original Walterscheid spare part

Product advantages

The Walterscheid diamond has been a guarantee of quality and safety for decades.
You can rely on their good reputation. It meets your requirements.
The scope of delivery includes 1x Wide angle connecting yoke series W with keyway and threaded bore.
Type
NG
Type
NG
Size
2480
B (mm)
86
Manufacturer
Walterscheid
d (mm)
32
A-Profile
40H8
L (mm)
118
A (mm)
25
D5 (mm)
27
Oberfläche/Behandlung
UNBEHANDELT
Ø ü.Nut
43.30
Abstand Bohr.-Ende 1
25.00
Länge Augenb.-Ende
118.00
Werkstoff
SIEHE STL
Anschluss-PR
RD40H8
Rohling-/Gabel-SNR
158212
N (mm)
12
Thread
M12
Profile length
62.00
Abstand Bohr.-Ende 2
0.00
Keyway width
12JS9
Arretier./Bohr./Gew. 1
GM14
Drawing
35.24.23M
